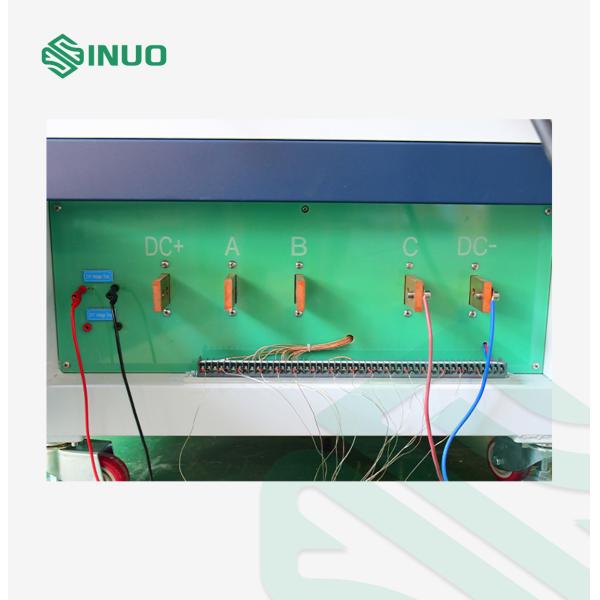

| Output Workstation | 1 DC output station |
| Maximum Output Voltage | DC less than DC 15V |
| Constant Adjustable Test Current Output | DC 200–6500A |
| Current Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 1A |
| Voltage Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 0.01V |
| Test Current Stability | ±(1% of set value + 0.5A), response time approximately 1s |
| Control Contact Power Supply | Current range AC (0–2) A |
| Operating Modes | Continuous mode, On/Off mode, Automatic temperature control mode |
| Continuous On/Off Mode | 1. Continuous Mode Test Time: 0.01–99.99 hours
2. On/Off Mode Power On/Off Time: 0.01–99.99 hours
3.On/Off Count: 1–9999 times, stops automatically when the count is reached
4.Current Setting: Programmable control settings (can be configured according to IEC62196, with time and current combinations as shown in the table below) |
| Automatic Temperature Control Mode | The system can set a stable temperature rise value and automatically find the appropriate current value.
• Temperature Rise Setting Range: 0–100°C
• Stability Accuracy: ±0.5°C
• Automatically calculates the required current for the desired temperature rise |
| Voltage Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 0.01V |
| Temperature Measurement Range | 0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C |
| Temperature Measurement Points | 16 channels (including 1 point for measuring ambient temperature) |
| Thermocouple Types Supported | The instrument supports J, K, T, E, S, N, B, R types of thermocouples. |
| Thermocouple Used for Measurement | USA Ω Company K-type 30AWG fine wire thermocouples, length 2 meters, 20 pieces in total |
| Control Contact Power Supply | Current range AC (0–2) A |
| Operating Modes | Continuous mode, On/Off mode, Automatic temperature control mode |
| Test Current Stability | ±(1% of set value + 0.5A), response time approximately 1s |
| Current Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 1A |
